Autonomous Robots For Solar Construction
MEET Gravion
purpose-built ultra-low-profile utility robot transforming the solar industry
NOW AVAILABLE FOR 12+ MONThS LEASE
Gravion - the purpose-built ultra-low-profile utility robot transforming the solar industry. With Gravion at your side, a 90-minute job is completed in just 3 minutes, saving time and increasing efficiency.
THIS CUTTINg-edge robot:
- 48 hrs
of continuous runtime before refueling, powered by a 23 U.S. gallon diesel fuel tank - 26 hp
liquid-cooled diesel engine. Tremendous power, high torque, cleaner emissions, and low noise and vibration - 5 min
needed to start operating. Simple, intuitive, and hassle-free controls even for novice operators
- 20+
attachments available. Gravion is a powerhouse of versatility, equipped to handle a wide range of tasks with ease - -13°F to 158°F
operating temperatures, ensuring peak efficiency and durability while working in extreme heat, freezing cold, or anything in between - 1000 ft in 3 min
1000 ft stretch of work done in just under 3 minutes. Time- and effort-demanding tasks are streamlined into a matter of moments

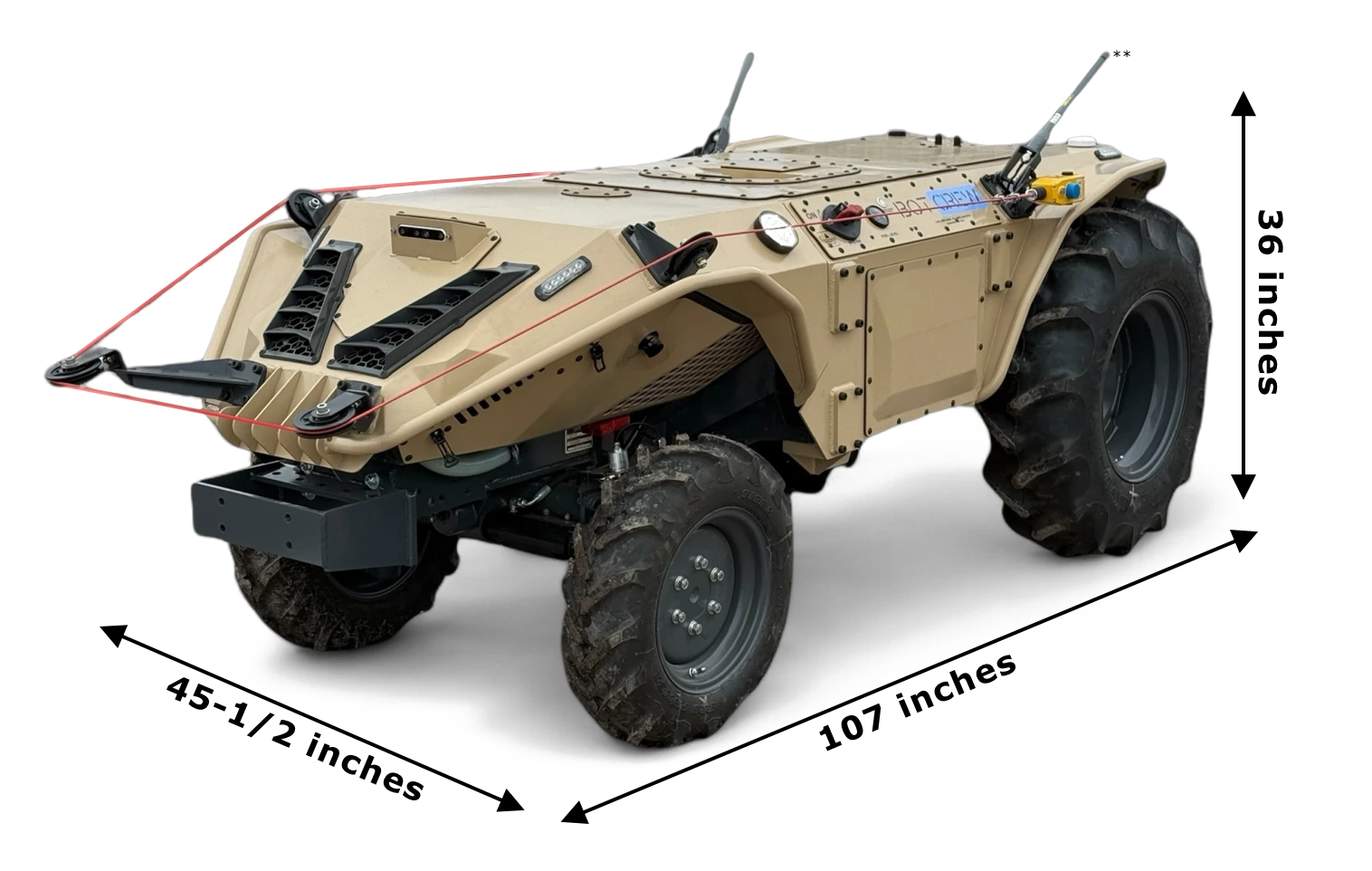

DIMENSIONS*:
*All dimensions are approximate and may vary depending on the robot configuration.
**Foldable antennas.
**Foldable antennas.
Other Features:
-
Emergency StopGravion robot is equipped with an emergency stop (e-stop) cable system around its perimeter, ensuring enhanced safety by allowing immediate halting of operations in case of an emergency -
4WDGravion is equipped with a robust 4WD system, ensuring enhanced traction, stability, and control, making it ideal for tackling a wide range of tasks on uneven, slippery, or challenging terrains -
Differential LockGravion is equipped with a differential lock (difflock) feature, providing enhanced traction by locking the rear wheels together, ensuring consistent power delivery to both wheels in challenging or uneven terrain
CAB Pulling Application
Designed to streamline operations and reduce labor demands, this cutting-edge robot delivers precision and reliability. With a specialized spool carrier attachment, it efficiently dispenses DC cables or messenger wire, eliminating manual pulling and reducing downtime. Covering large distances quickly, it significantly accelerates the wire-pulling process on utility-scale solar farms.
-
Faster Project Completion
Gravion equipped with the CAB Pulling attachment drastically cuts deployment time for cables and wires -
Improved Safety
Eliminates physical strain and risk of injury associated with manual cable pulling
CAPABILITIES:
-
3-Point Hitch- Lift Capacity at Hitch Point: 1,800 lbs (>815 kg)
- Lift Capacity 24 inches behind the lift point: 1,400 lbs (>635 kg)
These figures indicate the maximum weight the hitch can safely lift and carry at various distances from the lift arms. -
Drawbar- Drawbar Maximum Pulling Force: Approximately 1,500–2,000 lbs (680–910 kg), depending on terrain and conditions.
- Tongue Weight Capacity: Generally, the drawbar can support 10-15% of the trailer's weight for safe towing, which is typically around 200–300 lbs (90–136 kg)
-
Power Take-Off (PTO)- Rear PTO Horsepower: 19.5 HP
- Mid PTO Horsepower: Slightly lower than the rear PTO, depending on the specific implement and power demand
- Rear PTO Speed: 540 RPM.
- Mid PTO Speed: 2,500 RPM.
20+ AVAILABLE attachments
Different attachments can be connected using Gravion's versatile attachment points such as 3-Point Hitch, Front Loader Mount, Rear and Mid-PTO (Power Take-Off), Hydraulic Ports, optional Quick-Attach System

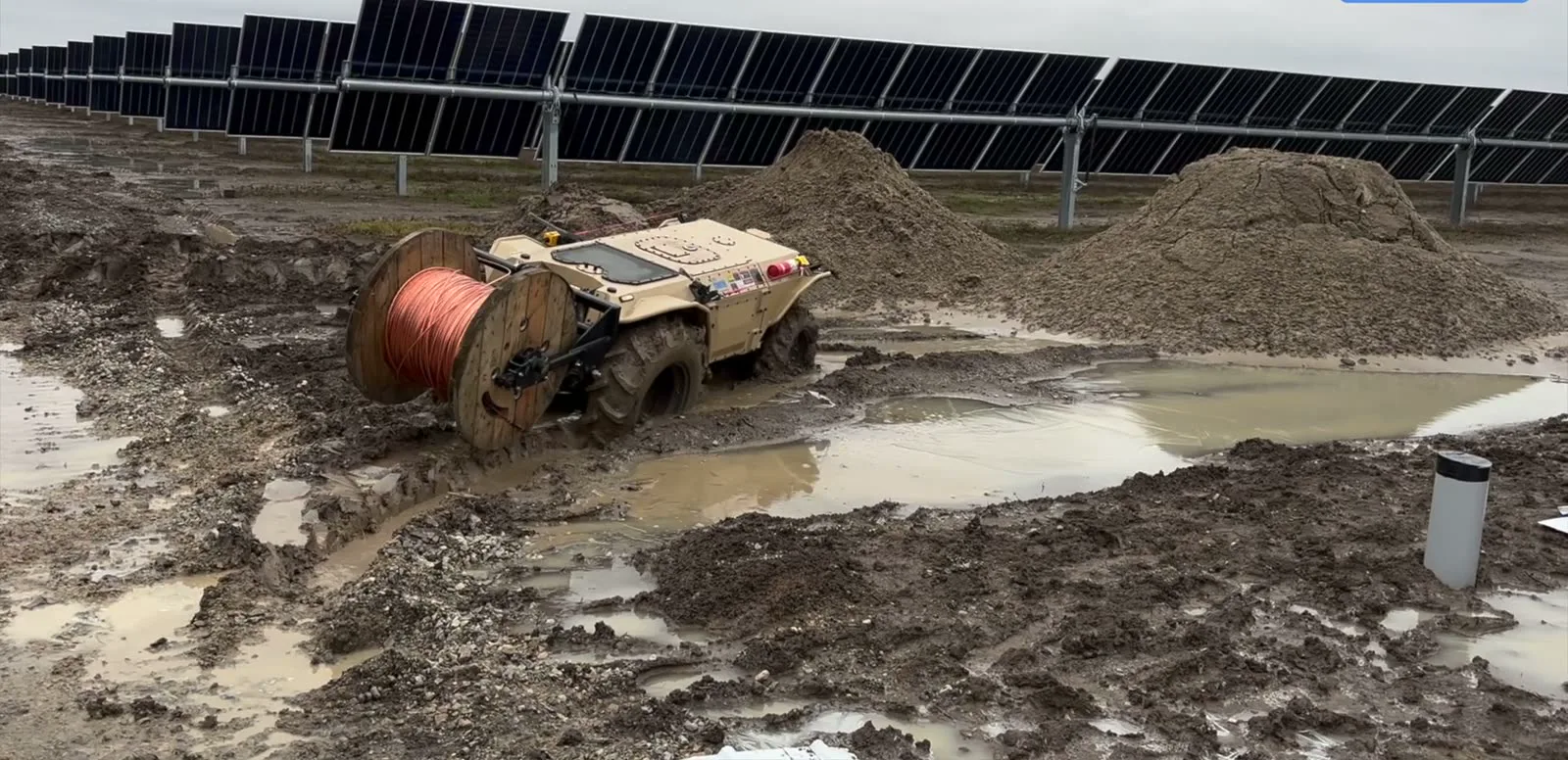

The Spool Carrier attachment is designed to streamline cable deployment, making it an ideal solution for CAB (Cable Management) pulling during solar site construction.
- Efficient Cable Deployment: Carries and dispenses spools of DC or messenger wire smoothly, reducing manual effort and downtime.
- Precision Handling: Ensures controlled and consistent cable pulling across large distances, minimizing tangles or damage.
- Robust Design: Built to withstand heavy loads and rugged site conditions for reliable performance.
- Time-Saving Integration: Speeds up the wire installation process, significantly improving project timelines.
The Snow Blower attachment is designed to efficiently handle snow removal tasks in various conditions, making it an essential tool for winter operations.
- Powerful Performance: Capable of clearing heavy snow quickly and effectively, even in challenging environments.
- Durable Design: Built to withstand extreme winter conditions, providing reliable performance and longevity.
- Easy Integration: Seamlessly connects to Gravion's system for hassle-free operation.
The Pallet Forks attachment is a versatile tool designed for lifting, carrying, and positioning heavy loads of up to 1,800 lbs (>815 kg) with ease, making it ideal for construction, solar site logistics, and material handling tasks.
- Heavy-Duty Lifting: Capable of transporting pallets, materials, and equipment efficiently across job sites.
- Precision Handling: Provides stable and controlled movement of loads, reducing risks of damage or spillage.
- Versatile Applications: Suitable for handling construction materials, crates, solar panels, and other heavy items.
- Rugged Design: Built for durability and performance in demanding worksite conditions.
The Front Loader attachment is a versatile and powerful tool for material handling, making Gravion an essential asset for construction, landscaping, and solar site operations.
- High Lifting Capacity: Easily lifts, transports, and dumps materials like soil, gravel, sand, and debris.
- Precision Control: Offers smooth and accurate operation for loading, grading, and leveling tasks.
- Durable Design: Built with heavy-duty components to handle tough worksite conditions and demanding loads.
- Quick Attachment: Seamlessly integrates with Gravion for fast setup and efficient operation.
The Stump Grinder attachment is a powerful tool designed to efficiently remove tree stumps, making land clearing and site preparation quick and effective.
- High-Performance Grinding: Grinds stumps down below ground level with precision and minimal effort.
- Heavy-Duty Construction: Built to handle tough wood and challenging terrain for long-lasting durability.
- Versatile Applications: Ideal for forestry, landscaping, and solar site clearing tasks.
- Efficient Operation: Seamlessly integrates with Gravion’s power and hydraulic systems for smooth and reliable performance.
- Reduced Labor: Eliminates the need for manual stump removal, saving time and effort on-site.
The Aerator attachment is designed to improve soil health by relieving compaction and enhancing water, air, and nutrient flow, making it ideal for agricultural, landscaping, and turf management applications.
- Effective Soil Aeration: Penetrates the ground to create openings that improve soil structure and promote healthy root growth.
- Versatile Applications: Suitable for farms, sports fields, parks, and other large turf or soil areas.
- Durable Design: Built with robust tines and heavy-duty materials to handle tough soil conditions and extended use.
- Increased Efficiency: Covers large areas quickly, reducing the time and labor needed for soil maintenance.
- Seamless Integration: Easily connects to Gravion’s 3-point hitch for smooth and reliable operation.
The Disc Harrow attachment is designed for soil preparation, making it an essential tool for breaking up compacted soil, chopping crop residue, and preparing seedbeds for planting.
- Effective Soil Tilling: Breaks up and smooths the soil, creating an ideal surface for planting crops or grass.
- Heavy-Duty Discs: Durable, sharp discs penetrate tough soil and handle residue with ease.
- Adjustable Angles: Provides flexibility to customize tilling depth and intensity based on project needs.
- Versatile Applications: Perfect for farms, food plots, and land preparation for landscaping projects.
- Efficient Integration: Attaches seamlessly to Gravion’s 3-point hitch for smooth and consistent operation.
The Field Cultivator attachment is designed to prepare and aerate soil efficiently, making it ideal for seedbed preparation, weed control, and soil conditioning in agricultural applications.
- Effective Soil Preparation: Breaks up compacted soil and uproots weeds, creating an optimal seedbed for planting.
- Adjustable Shanks: Equipped with durable, adjustable tines to control depth and spacing for varying soil conditions.
- Robust Construction: Built with heavy-duty materials to withstand tough field work and extended use.
- Versatile Applications: Ideal for row cropping, food plots, and general field cultivation tasks.
- Seamless Operation: Easily connects to Gravion’s 3-point hitch for smooth and consistent performance.
The Grading Scraper attachment is designed for leveling, smoothing, and maintaining surfaces, making it a valuable tool for construction, landscaping, and property maintenance.
- Efficient Surface Leveling: Smooths gravel, soil, and other materials to create even surfaces for driveways, roads, and job sites.
- Precision Performance: Adjustable blades ensure consistent grading depth for optimal results.
- Durable Construction: Built with heavy-duty steel for reliable performance in tough working conditions.
- Versatile Applications: Ideal for maintaining gravel driveways, preparing sites, and clearing uneven terrain.
- Seamless Integration: Easily attaches to Gravion’s 3-point hitch for quick and efficient operation.
The Landscape Rake attachment is a versatile tool designed for clearing, leveling, and finishing surfaces, making it ideal for landscaping, debris cleanup, and soil preparation.
- Efficient Debris Removal: Gathers rocks, sticks, leaves, and other debris for easy cleanup.
- Surface Leveling: Smooths soil, gravel, and other materials to prepare seedbeds or maintain paths.
- Durable Tines: Built with heavy-duty, spring-steel tines for long-lasting performance in tough conditions.
- Adjustable Angles: Allows the rake to be set at different angles for customized results and efficient operation.
- Easy Integration: Attaches seamlessly to Gravion’s 3-point hitch for quick setup and reliable performance.
The Rear Blade attachment is a versatile tool designed for grading, leveling, and snow removal, making it ideal for construction, landscaping, and property maintenance tasks.
- Efficient Grading and Leveling: Smooths soil, gravel, and other materials for roads, driveways, and job sites.
- Snow and Debris Clearing: Effectively removes snow, light debris, and material buildup.
- Adjustable Angles: Blade can be set at multiple angles for precise grading and customized results.
- Reversible Blade: Extends the lifespan of the blade by allowing use on both sides.
- Heavy-Duty Build: Constructed with durable steel to handle tough working conditions and extended use.
- Easy Integration: Attaches seamlessly to Gravion’s 3-point hitch for reliable and smooth operation.
The Mid-Mount 60” Mower attachment transforms Gravion into a highly efficient mowing solution, ideal for maintaining large areas such as fields, parks, and solar farms.
- Wide Cutting Coverage: The 60-inch deck provides efficient and uniform mowing, covering more ground in less time.
- Precision Cutting: Delivers a clean, consistent cut, ensuring professional-grade results even on uneven terrain.
- Low-Profile Integration: Mounts underneath Gravion, maintaining its ultra-low profile for operation under solar arrays and tight spaces.
- Durable and Reliable: Built with heavy-duty components to withstand tough conditions and extended use.
The Rear-Mount 48” Mower attachment offers a reliable and efficient solution for cutting grass and maintaining open spaces, making it perfect for fields, parks, and solar sites.
- 48-Inch Cutting Width: Provides efficient grass-cutting coverage while maintaining maneuverability in tighter areas.
- Rear-Mounted Design: Easily attaches to Gravion’s 3-point hitch for simple setup and operation.
- Precision Performance: Delivers a clean, even cut across a variety of terrains, ensuring professional results.
- Rugged Construction: Built with durable materials to withstand heavy use in demanding conditions.
The Post Hole Diggers attachment is a powerful tool for quickly and efficiently digging holes for fencing, foundations, and other construction or agricultural tasks.
- Precision Digging: Drills clean, consistent holes with minimal effort, saving time and labor.
- Various Auger Sizes: Compatible with different auger bit diameters to suit specific project requirements.
- Heavy-Duty Performance: Built for durability, handling tough soil conditions and extended use.
- Easy Integration: Attaches seamlessly to Gravion’s 3-point hitch and PTO system for smooth operation.
The Backhoe attachment transforms Gravion into a powerful digging and excavation tool, ideal for a variety of construction, utility, and site preparation tasks.
- Precision Digging: Efficiently digs trenches, holes, and foundations with accuracy and minimal effort.
- Versatile Applications: Suitable for utility line installation, tree planting, excavation, and foundation work.
- Heavy-Duty Performance: Built with robust components to handle tough soil conditions and demanding jobs.
- Extended Reach: Provides excellent digging depth and range for increased productivity on-site.
- Smooth Integration: Attaches seamlessly to Gravion’s rear 3-point hitch and hydraulic system for reliable operation.
The Grapple attachment is designed for efficient handling, lifting, and moving of bulky materials, making it an essential tool for debris cleanup, land clearing, and material management.
- Powerful Grip: Securely grabs and holds logs, branches, rocks, and other heavy or irregularly shaped materials.
- Versatile Applications: Ideal for forestry work, storm cleanup, construction sites, and solar farm maintenance.
- Robust Design: Built with heavy-duty materials to withstand tough working conditions and ensure durability.
- Efficient Operation: Seamlessly integrates with Gravion’s hydraulic system for precise and reliable control.
- Improved Productivity: Reduces manual labor by quickly and efficiently handling large volumes of material.
The Box Blade attachment is a heavy-duty tool designed for grading, leveling, and backfilling, making it an essential implement for construction, landscaping, and property maintenance.
- Precision Grading: Smooths and levels soil, gravel, or other materials for driveways, roads, and construction sites.
- Scarifier Teeth: Adjustable scarifiers break through compacted soil, preparing the ground for grading or landscaping.
- Durable Build: Constructed with heavy-duty steel to handle tough terrain and demanding conditions.
- Versatile Applications: Ideal for land clearing, spreading material, maintaining paths, and surface preparation.
- Easy Integration: Attaches seamlessly to Gravion’s 3-point hitch for consistent, reliable operation.
The Drag Harrow attachment is a versatile tool designed for light soil leveling, surface smoothing, and debris management, making it ideal for agricultural, landscaping, and maintenance tasks.
- Surface Smoothing: Levels and smooths soil, gravel, and sand for seedbeds, pastures, and arenas.
- Debris Management: Effectively breaks up clumps, spreads manure, and clears small debris to maintain healthy fields.
- Durable Construction: Built with heavy-duty steel tines for long-lasting performance in tough conditions.
- Flexible Design: Adjusts to varying ground contours for consistent results across uneven terrain.
- Easy Integration: Attaches seamlessly to Gravion’s 3-point hitch for quick and efficient operation.
The Food Plot Seeder attachment is designed for efficient and precise planting, making it ideal for establishing food plots, cover crops, and small-scale seeding projects in agriculture and wildlife management.
- Precise Seeding: Ensures uniform seed distribution for optimal germination and crop growth.
- Multi-Purpose Use: Handles a variety of seeds, including grasses, legumes, and cover crops.
- Adjustable Settings: Allows for customizable seed depth and spread rate to meet project requirements.
- Durable and Efficient: Built with heavy-duty components to withstand rugged field conditions and extended operation.
- Easy Integration: Connects seamlessly to Gravion’s 3-point hitch for quick setup and reliable performance.
The Moldboard Plow attachment is designed for deep tillage and soil inversion, making it an essential tool for preparing fields and breaking up tough, compacted ground in agricultural and land management tasks.
- Deep Soil Penetration: Effectively turns over and loosens soil, burying crop residue and weeds to prepare the land for planting.
- Efficient Tillage: Creates well-defined furrows, improving soil aeration and nutrient distribution.
- Robust Construction: Built with heavy-duty steel moldboards and shanks to handle hard and compacted soil with ease.
- Customizable Operation: Adjustable settings allow for controlling plow depth to meet specific field conditions.
- Seamless Integration: Connects to Gravion’s 3-point hitch for reliable and smooth operation.
The Quick Hitch attachment simplifies the process of connecting and disconnecting attachments, saving time and effort during equipment changes on the job site.
- Fast Implement Changes: Allows for quick and easy hookup of 3-point hitch attachments without manual adjustments.
- Universal Compatibility: Designed to work with a wide range implements.
- Durable Construction: Built with heavy-duty steel for long-lasting performance in demanding conditions.
- Operator Efficiency: Reduces downtime and physical effort, improving overall productivity.
- Secure Connection: Ensures a strong, stable link between Gravion and the attachment for safe operation.
The Rotary Cutter (Single Spindle) attachment is designed for heavy-duty mowing and clearing of thick grass, weeds, and light brush, making it ideal for land maintenance and agricultural tasks.
- Powerful Cutting Performance: Easily handles tall grass, weeds, and brush up to 1 inch in diameter.
- Single Spindle Design: Provides efficient and consistent cutting across large areas.
- Durable Construction: Built with heavy-duty steel and reinforced blades for reliable operation in tough conditions.
- Adjustable Cutting Height: Allows control over the desired mowing height to meet specific needs.
- Versatile Applications: Perfect for clearing fields, pastures, roadside ditches, and undergrowth.
- Seamless Operation: Connects to Gravion’s 3-point hitch and PTO system for smooth and consistent power delivery.
Choose Your Level of Control:
Take Control with Gravion
Gravion’s controlled operation mode offers you complete command over the robot’s functions, ensuring seamless integration into your existing workflows. Designed for rapid deployment, this version allows operators to manually control Gravion using intuitive systems, enabling your team to achieve results from day one. Equipped with up to 18 Depth Cameras, featuring a up to 360 field of view, global shutter and a depth range of up to 6 meters (almost 20 ft), Gravion provides reliable visibility and precise task execution across various environments.
This mode is ideal for customers beginning their automation journey, allowing them to integrate Gravion swiftly, become familiar with its capabilities, and immediately benefit from time and labor savings. Controlled operation lays a solid foundation for future upgrades, ensuring your team gains confidence in Gravion’s performance before advancing toward full automation.
This mode is ideal for customers beginning their automation journey, allowing them to integrate Gravion swiftly, become familiar with its capabilities, and immediately benefit from time and labor savings. Controlled operation lays a solid foundation for future upgrades, ensuring your team gains confidence in Gravion’s performance before advancing toward full automation.
The Best of Both Worlds: Human + Autonomy
Gravion’s mixed control mode combines human decision-making with autonomous operations for optimized efficiency. In this mode, operators manage critical tasks—such as complex navigation or site-specific challenges—while Gravion autonomously handles routine operations, streamlining workflows and maintaining control where it matters most.
This hybrid approach reduces operator workload, allowing your team to focus on high-level priorities while Gravion performs repetitive jobs with speed and accuracy. It serves as an excellent transitional step toward full autonomy, providing a balance between manual oversight and automation. Mixed control mode accelerates productivity and builds trust in Gravion’s advanced capabilities, paving the way for fully autonomous operations.
This hybrid approach reduces operator workload, allowing your team to focus on high-level priorities while Gravion performs repetitive jobs with speed and accuracy. It serves as an excellent transitional step toward full autonomy, providing a balance between manual oversight and automation. Mixed control mode accelerates productivity and builds trust in Gravion’s advanced capabilities, paving the way for fully autonomous operations.
Unlock Full Autonomy with Gravion
Gravion’s fully autonomous mode represents the pinnacle of robotic efficiency, equipped with 3D LiDAR, offering real-time, 360° 3D distance and calibrated measurements with a range of up to 100 meters (328 ft). Additionally, Gravion features a network of 8 to 18 cameras strategically positioned around its perimeter, providing comprehensive situational awareness.
This advanced configuration enables Gravion to make complex decisions, navigate dynamic environments, and complete tasks independently with exceptional accuracy and reliability. Fully autonomous operation eliminates the need for constant human input, optimizing performance and productivity across large-scale operations. Whether traversing challenging terrain, deploying attachments, or performing repetitive tasks, Gravion adapts to its surroundings and delivers consistent results. For businesses aiming to maximize efficiency, reduce labor costs, and streamline operations, this mode offers a comprehensive solution for long-term success.
This advanced configuration enables Gravion to make complex decisions, navigate dynamic environments, and complete tasks independently with exceptional accuracy and reliability. Fully autonomous operation eliminates the need for constant human input, optimizing performance and productivity across large-scale operations. Whether traversing challenging terrain, deploying attachments, or performing repetitive tasks, Gravion adapts to its surroundings and delivers consistent results. For businesses aiming to maximize efficiency, reduce labor costs, and streamline operations, this mode offers a comprehensive solution for long-term success.
lET's connect!
At BotCrew, we’ve always believed that innovation should not only boost efficiency but also protect the people doing the work. That’s why we created the Gravion. Gravion isn’t just about getting the job done faster—although turning a 90-minute task into a 2-minute one is incredible—it’s about doing it safer. I’ve seen firsthand the toll that physically demanding, repetitive tasks can take on workers. With Gravion, we’re eliminating those risks. This robot is designed to handle the toughest jobs, so our customers can focus on their expertise without worrying about injuries.
When you use Gravion, you’re not just investing in cutting-edge technology. You’re choosing a solution that works harder, lasts longer, and puts safety first. That’s something I’m proud to stand behind.
I’m here to personally discuss how Gravion and our solutions can meet your needs and transform your operations. Feel free to reach out to me directly—I’d be happy to help.
When you use Gravion, you’re not just investing in cutting-edge technology. You’re choosing a solution that works harder, lasts longer, and puts safety first. That’s something I’m proud to stand behind.
I’m here to personally discuss how Gravion and our solutions can meet your needs and transform your operations. Feel free to reach out to me directly—I’d be happy to help.
Al Johnson
President
GRAVION.
|
|
GALLERY:
WHY HIRE BOTCREW ROBOTS:
-
Always Reliable
Gravion robots are available 24/7, ensuring consistent workflow and eliminating disruptions caused by unexpected challenges like scheduling gaps or delays. -
Cost-Effective and Predictable
Leasing Gravion robots provides a straightforward and budget-friendly solution. There are no additional costs like health benefits, overtime, or bonuses—just reliable performance every time. -
Unwavering Efficiency and Energy
Gravion robots tackle demanding tasks with consistent efficiency, helping your team maintain a steady pace on every project. And who knows? They might even bring some inspiration to your worksite!
Connect with our team for a
free consultation about the solution
free consultation about the solution
CONTACTS:
(989) BOT-CREW or (989) 268-2739
contact@botcrew.com
contact@botcrew.com
This website uses cookies to ensure you get the best experience
OK
Connect with our team
for a free consultation about solution
Connect with our team
for a free consultation about solution
Connect with our team
for a free consultation about solution
Connect with our team
for a free consultation about solution
Connect with our team
for a free consultation about solution
Connect with our team
for a free consultation about solution
Let's connect!
I will personally receive your message and get in touch with you.
